An accessory for sweeps above 2 GHz
Near-field RF detectors ship with a general-purpose antenna that has to cover everything from VHF to Wi-Fi. That compromise costs range at the top of the band, which is exactly where modern transmitters live: Wi-Fi, Bluetooth, LTE and most wireless cameras. A dedicated microwave antenna extends detection distance for those signals.
Usage with a bug detector
The MWA‐12 will increase detection distance of signals above 2GHz when used with a near‐field RF detector (also known as RF detector or bug detector). The reception will be improved for such signals as 3G, upper band 4G/LTE, WiFi 2.4GHz, Bluetooth, WiFi 5GHz, wireless cameras, etc. The RF device must have the SMA female connector. Otherwise the adapter should be used. Since the efficient range starts from 2 GHz, the signals with lower frequency will be omitted. Therefore repeat sweeping procedure with the standard antenna supplied with a near‐filed RF detector.
- Frequency range 2000‐12000 MHz (2‐12GHz)
- Directed (log‐periodic
- Typical forward gain: 6 dBi

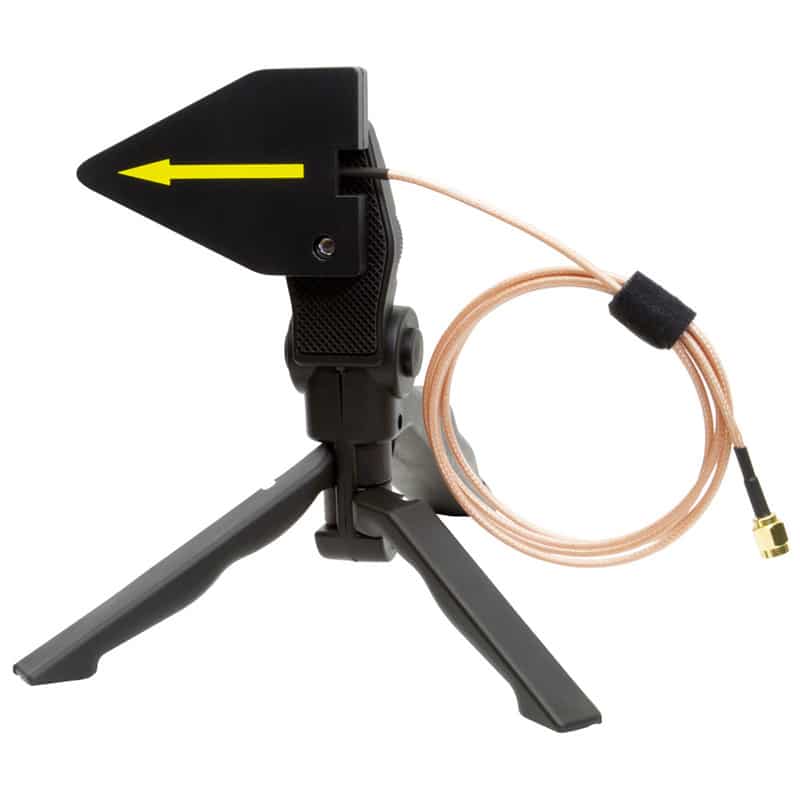

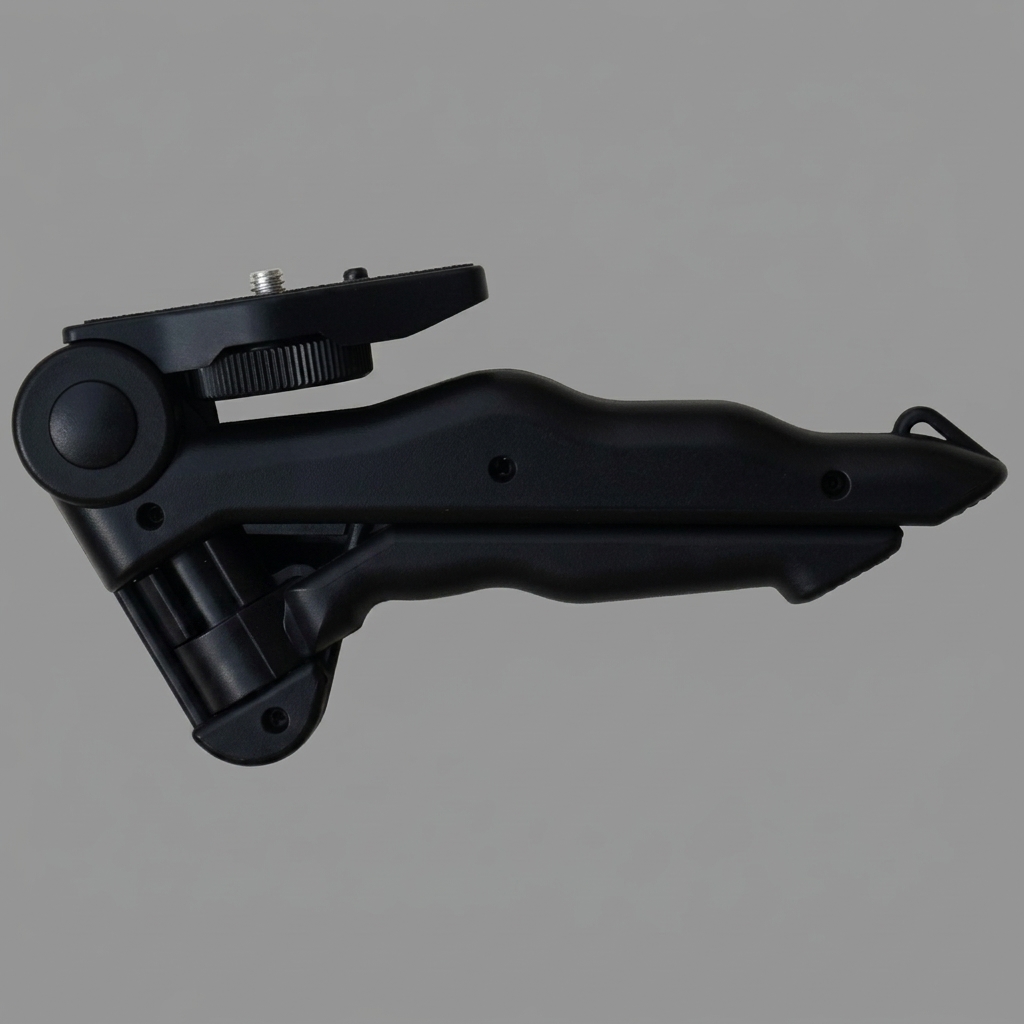

- Tripod mountable (tripod supplied)

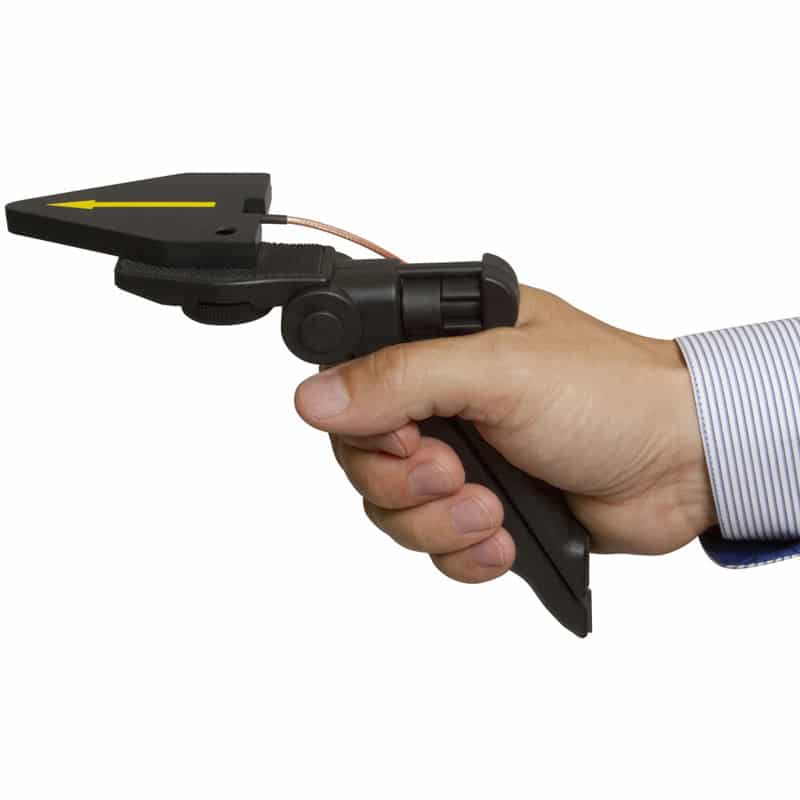

- The tripod can convert to a hand‐held unit for manual probing (locating procedure)
- Mode of use: receive
- Indoor use only
How it is used in a real sweep
This antenna is a second pass, not a replacement. Because its efficient range starts at 2 GHz, anything below that is invisible to it — so a sweep runs the standard antenna first across the full band, then repeats with the microwave antenna to extend reach on the high end. Skipping the first pass is how a 433 MHz transmitter gets missed.
Fit and compatibility
The detector must have an SMA female connector, or you need an adapter. Check your unit before ordering.
Equipment is the smaller half of a sweep
Detection hardware finds transmitters that happen to be transmitting while you are standing there. A professional technical surveillance countermeasures sweep also covers physical search, wiring and telephone inspection, and a written report you can act on. If you suspect a real intrusion rather than testing your own gear, have it swept properly rather than relying on a handheld alone.
