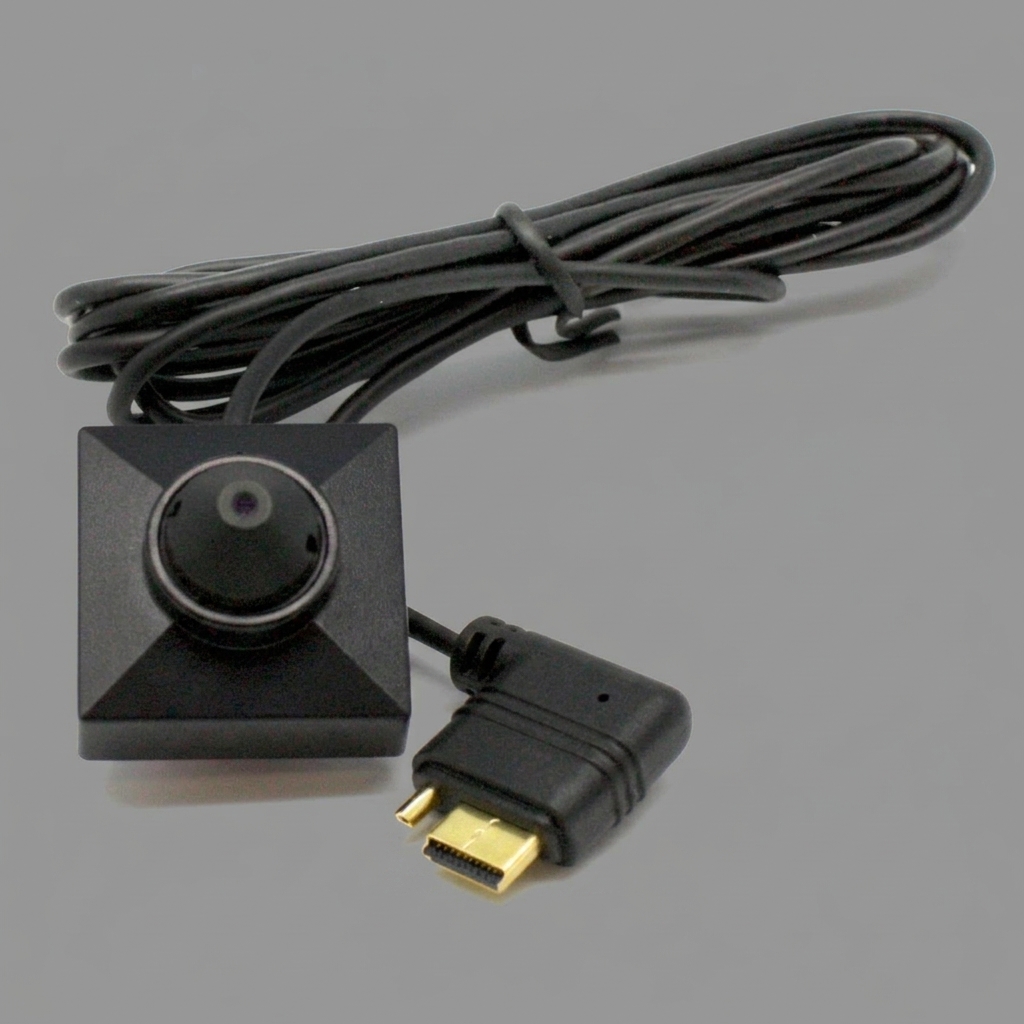

CMOS 1080P Color Camera Cone Lens

This is the low-light specialist among the button cameras: a 2MP CMOS pinhole camera rated at 0.03 Lux at F2.0, with a cone lens and ultra-thin cabling. The sensitivity figure is the reason to choose it — 0.03 Lux is roughly the light of a dim room at night, where an ordinary covert camera returns noise.

Why the low-light rating is the spec that matters

Covert cameras almost never work in good light. They sit behind a small aperture, in interiors, often in the evening — and the aperture itself costs light before the sensor ever sees the scene. A camera rated at 0.03 Lux holds a usable image where a less sensitive unit produces grain, motion smear and a subject you cannot identify.

Resolution is the specification everyone compares and sensitivity is the one that decides whether the footage is worth anything. A 1080p image too dark to resolve a face is worse than a lower-resolution image that is properly exposed.

Cone lens versus flat: pick by mounting depth

A cone lens protrudes through the mounting surface and needs a small aperture in front of it, which suits a garment where the lens sits at a buttonhole, or a housing with material thickness between the camera and the scene. A flat lens sits flush and conceals better behind a surface but needs the opening directly in front of it. Depth of material is the deciding factor, not appearance.

Whichever you choose, the opening matters more than the lens. A pinhole behind mesh, fabric or tinted plastic loses far more light than people expect — enough to undo the sensitivity advantage entirely. Check the actual image from the actual position before you close the housing.

The cabling is a real feature

The ultra-thin, lightweight cable is what makes an awkward concealment possible. A stiff cable forces a wide route and telegraphs the installation; a thin one follows a seam, a trim line or a garment placket. The single-cable design carries power and video together, so there is one run to hide rather than two. Plan that route before you mount anything — a cable crossing a visible gap defeats the entire exercise.

The microphone is built in and invisible, which means the legal notes below apply whether or not you were thinking about audio.

The legal frame

Arizona is a one-party consent state for audio under A.R.S. § 13-3005 — you may record a conversation you are party to. Other states require all parties to consent, and interstate conversations can pull the stricter rule in. Video adds its own constraint: recording where a person has a reasonable expectation of privacy — restrooms, changing areas, medical settings, private residences — can be criminal regardless of the audio rule, and workplace recording may be further limited by employment law. Ask counsel before deployment, not after.

Related

Requires a compatible DVR — see surveillance equipment. If you would rather a licensed Arizona agency handled the documentation, see private investigations.

Made by LawMate, backed by KJB.
