4K Pole Camera with Thermal Image Capture

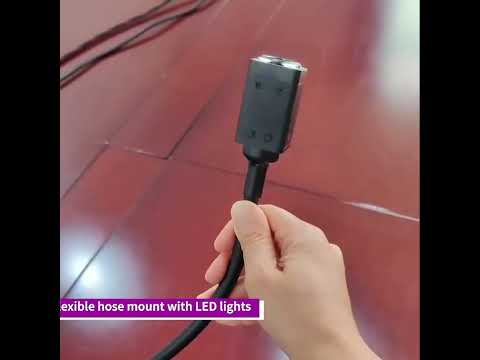

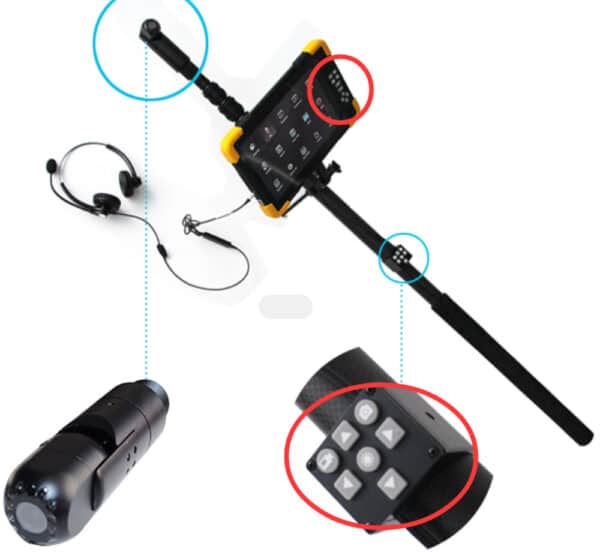

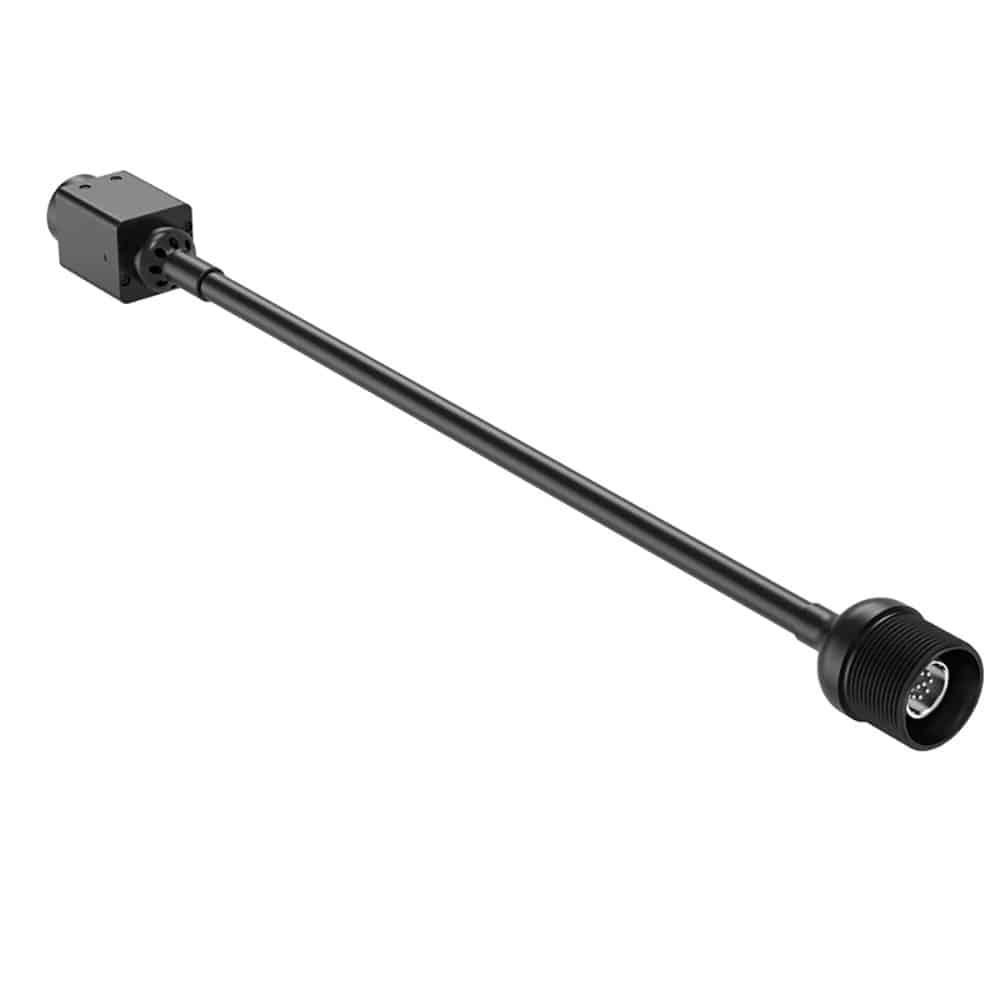

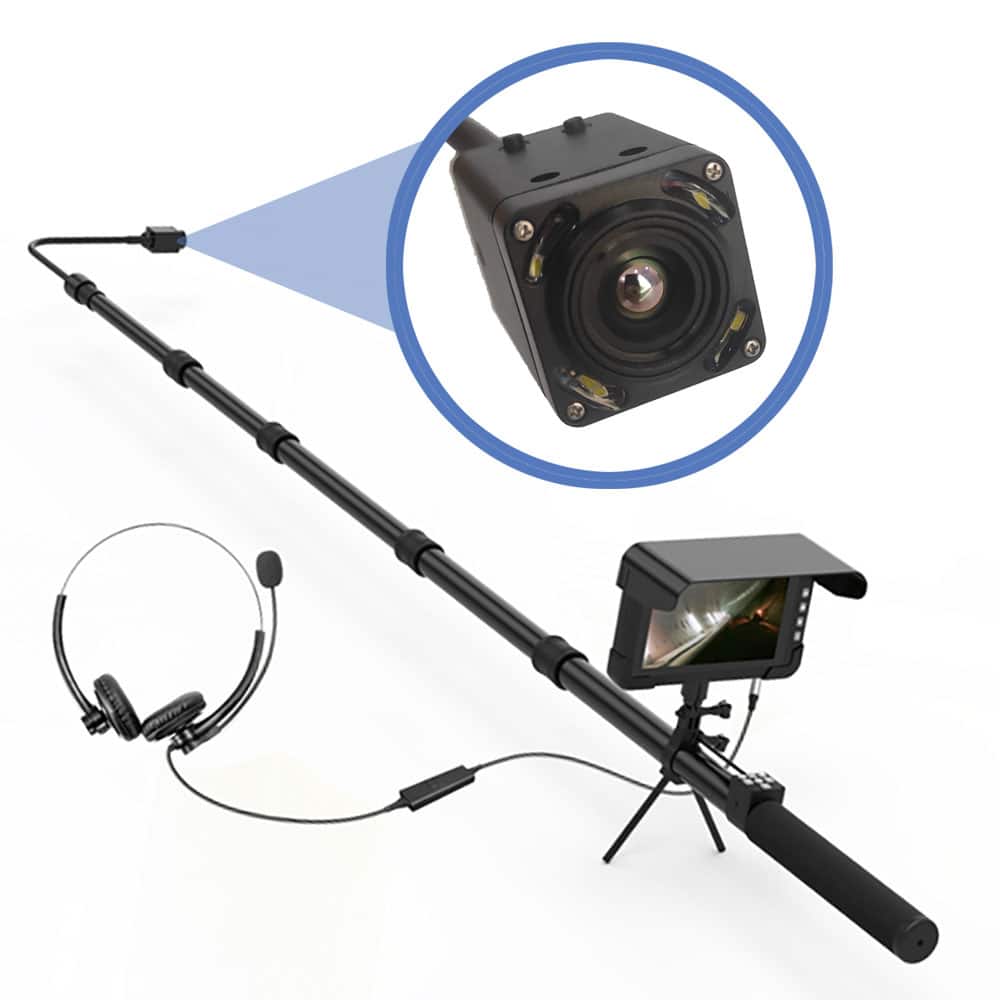

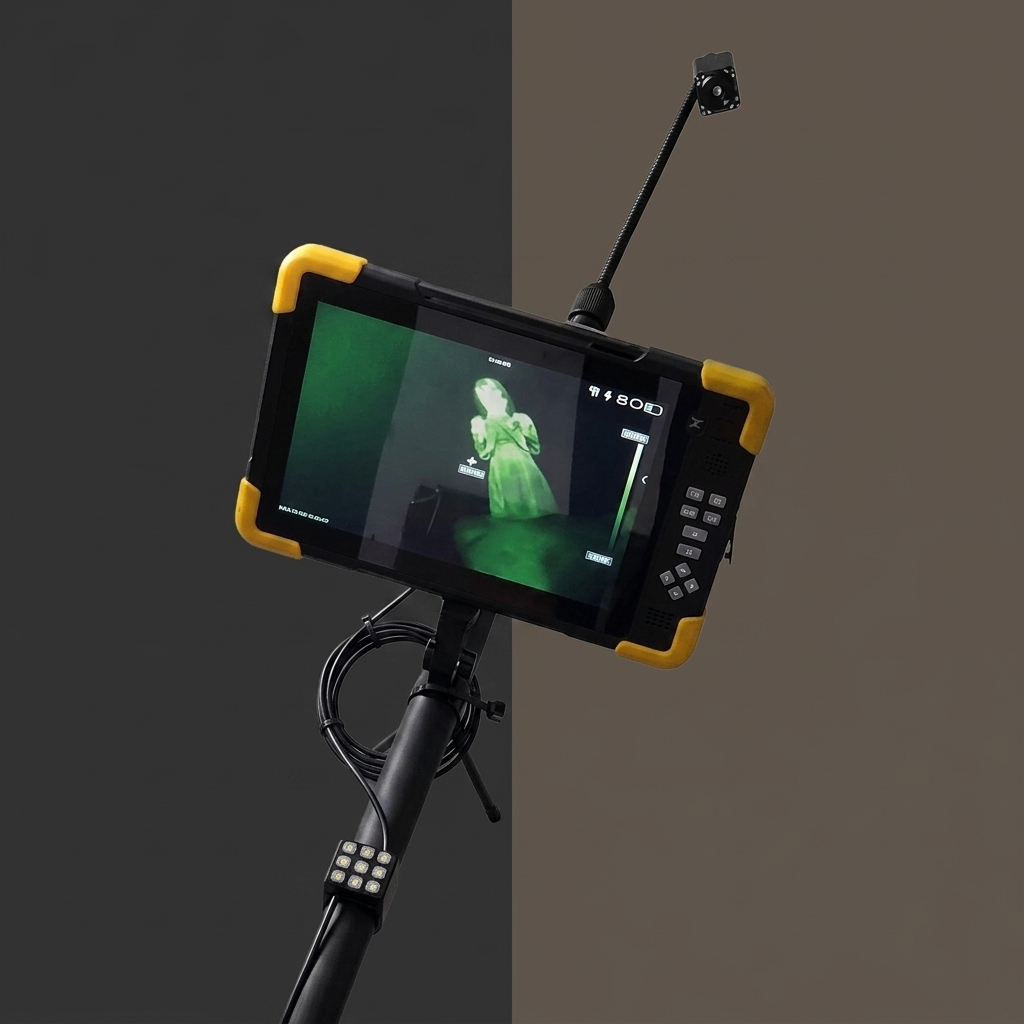

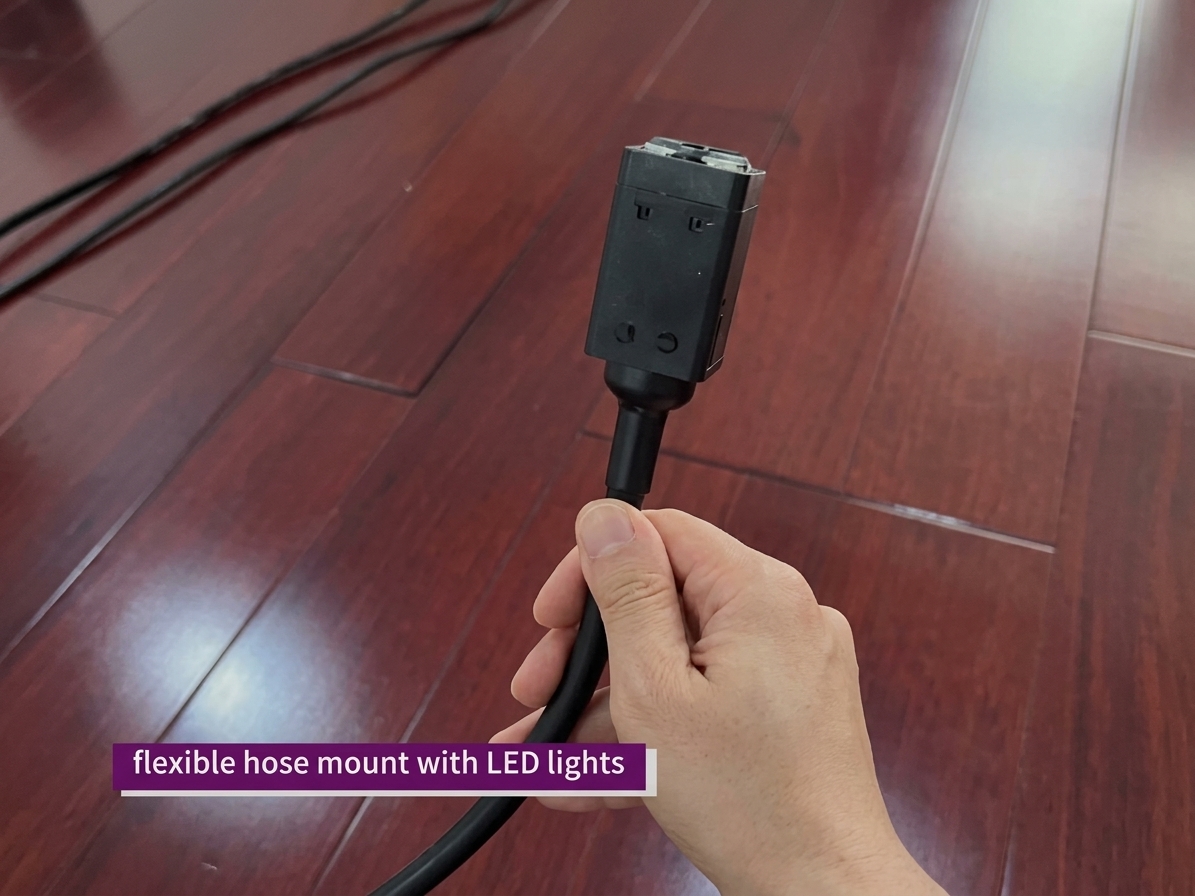

This is the fixed-head 4K thermal pole camera: a telescoping hose with a 4K visible camera and thermal image capture, feeding a touch-screen DVR that records both. It is the straightforward member of the family — no pan-tilt-zoom head, no body-temperature measurement — and for most inspection work that is exactly right, because a fixed head is faster to deploy and has less to go wrong on a pole in a ceiling void.

What thermal adds that a camera cannot

A visible-light camera shows you what a space looks like. A thermal camera shows you where the energy is, and those are different questions. A device drawing current is warmer than the cavity around it; a failing bearing, an overloaded circuit or a loose termination is warmer than its neighbours; a person concealed behind an obstruction reads as a heat signature that no amount of resolution in the visible spectrum would reveal. Thermal finds the anomaly; the 4K camera then tells you what it is.

Which of the three pole cameras you want

This unit — fixed head, 4K plus thermal, two-way intercom audio. Fastest to deploy, fewest moving parts, right for routine inspection sweeps.

The pan-tilt-zoom version — same imaging, but the head re-aims while the camera is already inside the void, so you are not withdrawing and re-inserting to change angle. Worth it when access is awkward or the space is large.

The body-temperature model — adds precise temperature measurement and a laser pointer, for work where the reading itself is the output rather than a means of finding something.

Where it earns its cost

Mechanical inspection: overheating, friction and failing components in machinery, found before they become damage. Electrical inspection: circuit overload, hot terminations and imbalanced loads inside panels and conduit. Security and TSCM: the void above a drop ceiling and the space behind fixed millwork are the two places a device most often sits and the two most often skipped, because reaching them means a ladder and disassembly — a pole camera turns that into a ninety-second look, and thermal flags anything powered.

Using it well

Thermal readings are relative, not absolute. Shiny metal reflects infrared and reads cold when it is not; painted and matte surfaces read honestly. Compare a suspect component against an identical one beside it rather than against a number in your head. Let the scene settle — a panel just opened to room air is already changing. And move slowly in overlapping passes: sweeping fast reads as “nothing there” when in fact nothing was resolved.

The intercom camera provides two-way talk, which is more useful than it sounds when one person is on the pole and another is at the panel. See also counter-surveillance equipment, or have the sweep run for you — TSCM services.
